Rs. 225.00Rs. 170.00

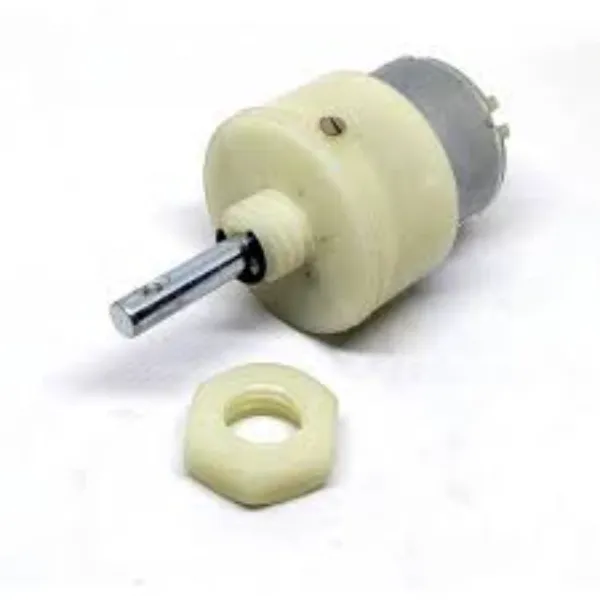

100 RPM 12V DC Geared Motor – high torque, low-speed motor with metal gears, perfect for robotics, mechanical automation, and embedded DIY projects.
The 100 RPM 12V DC Geared Motor is a high-torque, low-speed motor designed for precise and powerful motion in robotics, automation, and mechanical projects. Operating at 12V, it delivers approximately 100 rotations per minute, making it ideal for 2WD/4WD robotic platforms, arm mechanisms, conveyor systems, and wheel-driven vehicles.
Equipped with a rugged metal gearbox and 6mm D-shaped shaft, it ensures strong torque output and reliable performance even under load. Pre-threaded mounting holes allow for quick integration with robot chassis, brackets, or structural frames.
This motor is widely used in Arduino projects, IoT robotics, and engineering models, offering a perfect mix of durability, power, and compatibility.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~100 RPM @ 12V DC |
| Stall Torque | ~6–7 kg·cm (approximate) |
| Current Draw | ~300–500 mA (no-load), up to 1.5 A (under load) |
| Shaft Diameter | 6 mm (D-type) |
| Gearbox Material | Metal |
| Mounting Holes | Threaded on gearbox faceplate |
| Weight | ~220–260 g |
| Applications | Robotics drive systems, RC vehicles, pan-tilt heads, conveyor belts, arm joints, DIY automation |
? Included in Package:
-
1 × 100 RPM 12V DC Geared Motor
