Rs. 225.00Rs. 170.00

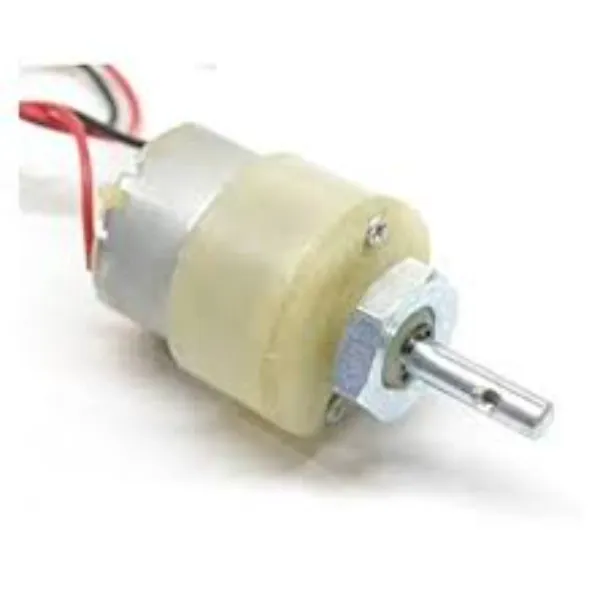

150 RPM 12V DC Geared Motor – high torque brushed motor with metal gearbox, ideal for robotic wheels, drive systems, and embedded automation projects.
The 150 RPM 12V DC Geared Motor is a high-torque, medium-speed motor designed for use in robotic platforms, automated systems, and DIY mechanical devices. Operating on 6V–12V DC, it delivers ~150 RPM with consistent torque and performance, making it perfect for 2WD/4WD robotic chassis, conveyors, and gear-driven mechanisms.
The metal gearbox ensures long life and reliable torque transmission. The output shaft is 6mm D-shaped, compatible with various wheels, couplers, and rotary encoders. Pre-drilled mounting holes make it easy to attach the motor to frames and chassis.
This motor strikes a perfect balance between power, speed, and ease of integration, ideal for educational kits, prototyping, and hobby automation.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| No-Load Speed | ~150 RPM @ 12V DC |
| Stall Torque | ~5–6 kg·cm (approx.) |
| Current Draw | ~300–500 mA (no-load), up to 1.5 A (load) |
| Shaft Diameter | 6 mm (D-type) |
| Gearbox Material | Metal |
| Mounting | Pre-threaded holes on the front plate |
| Weight | ~200–250 g |
| Applications | Robotics drive, DIY cars, RC bots, conveyor belts, automation arms, pan-tilt systems |
? Included in Package:
-
1 × 150 RPM 12V DC Geared Motor
