Rs. 225.00Rs. 170.00

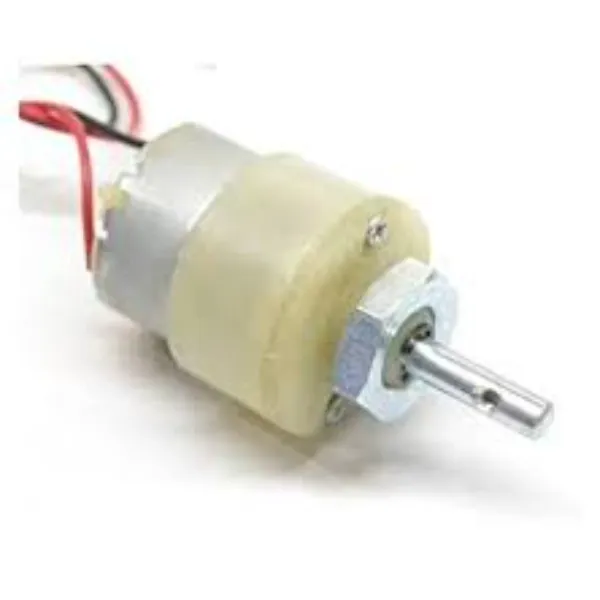

200 RPM 12V DC Geared Motor – medium-speed brushed DC motor with reliable torque, perfect for mobile robots, conveyor mechanisms, and DIY automation systems.
The 200 RPM 12V DC Geared Motor is a robust and compact medium-speed motor suitable for robotic drive systems, automation mechanisms, and DIY embedded projects. With a built-in metal gearbox, this motor offers reliable torque and consistent speed, making it ideal for wheeled robots, pan-tilt systems, and conveyor-style applications.
Operating between 6V to 12V DC, this motor performs best at 12V, delivering around 200 RPM with a 6mm D-shaped output shaft. It is easy to mount on chassis using the pre-threaded holes on the gearbox.
Ideal for students, makers, and professionals working on 2WD/4WD robots, IoT-based automation, and mechanical system prototyping.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~200 RPM @ 12V DC |
| Stall Torque | ~4.5–5 kg·cm (varies by load) |
| Current Draw | ~300–400 mA (no-load), up to 1.2 A (load) |
| Shaft Diameter | 6 mm D-type |
| Gearbox Material | Metal |
| Mounting Holes | Pre-threaded holes on front face |
| Weight | ~200–250 g |
| Applications | Robotics drive, DIY cars, RC automation, conveyor belts, mechanical prototypes |
? Included in Package:
-
1 × 200 RPM 12V DC Geared Motor
