Rs. 225.00Rs. 170.00

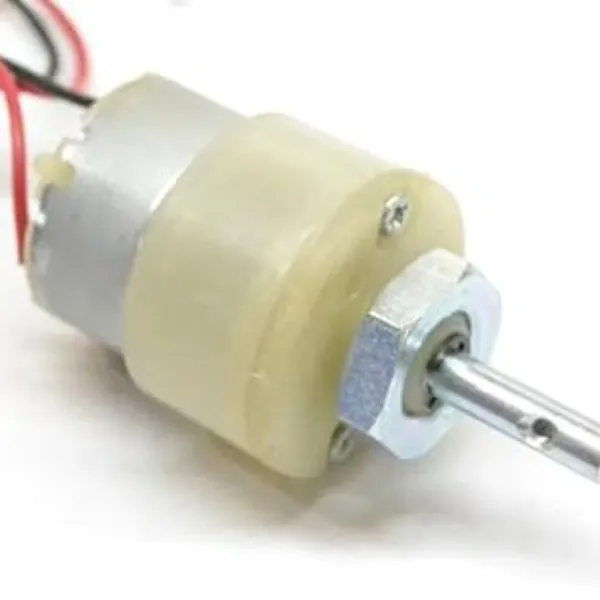

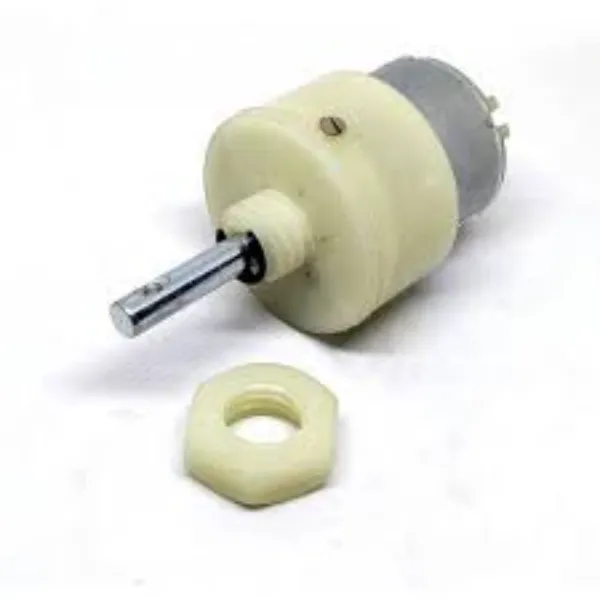

30 RPM 12V DC Geared Motor – ultra high torque, low RPM DC motor with metal gearbox for robotics, automation, and controlled heavy motion applications.
The 30 RPM 12V DC Geared Motor is a low-speed, ultra torque DC motor equipped with a durable metal gearbox, making it an excellent choice for applications requiring controlled movement, precise positioning, or heavy-duty lifting.
With a no-load speed of ~30 RPM at 12V DC, it’s best suited for robotic arms, pan/tilt camera systems, automated doors, gear-driven mechanisms, and industrial automation. The 6mm D-type shaft allows for secure mounting with wheels, couplers, or gears, and the threaded faceplate mounting holes ensure easy installation.
This motor is highly reliable for long-running systems where torque and stability are critical.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~30 RPM @ 12V DC |
| Stall Torque | ~10–12 kg·cm (approx.) |
| Current Draw | ~400–600 mA (no-load), up to 2 A (under load) |
| Shaft Diameter | 6 mm (D-shape) |
| Gearbox Material | Metal |
| Mounting Holes | Threaded holes on gearbox face |
| Weight | ~300–350 g |
| Applications | Robotic arms, camera sliders, lift systems, smart locks, automation units, high load motion projects |
? Included in Package:
-
1 × 30 RPM 12V DC Geared Motor
