Rs. 225.00Rs. 170.00

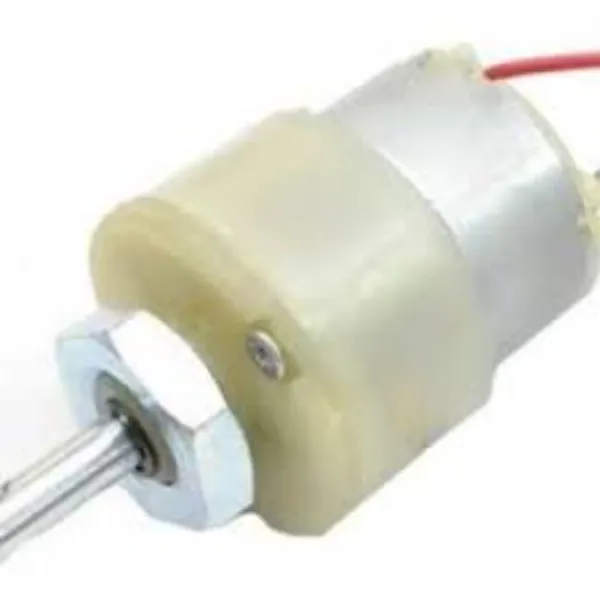

300 RPM 12V DC Geared Motor – medium speed brushed DC motor with good torque, suitable for robots, automation systems, and mechanical DIY kits.
The 300 RPM 12V DC Geared Motor is a medium-speed, medium-torque motor perfect for robotic drive systems, DIY automation, wheeled bots, and small industrial mechanisms. Its integrated metal gearbox ensures stable torque output with minimal slip, making it reliable under continuous or load-bearing operations.

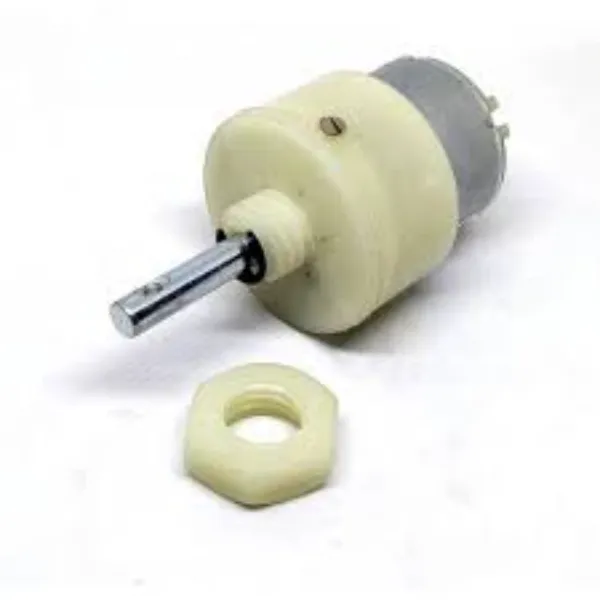

This motor features a 6 mm D-shaft for secure coupling with wheels or gears, and is easy to mount using the threaded holes on the front faceplate. It operates efficiently at 12V DC, but can also be used between 6–12V for variable speed control.
It’s an excellent choice for 2WD/4WD robots, RC cars, conveyor systems, or mechanical arms.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~300 RPM @ 12V DC |
| Stall Torque | ~3.5–4.5 kg·cm (approximate) |
| Current Draw | ~200–400 mA (no load), up to 1.5 A (load) |
| Shaft Diameter | 6 mm (D-shape) |
| Gearbox Material | Metal |
| Mounting Holes | Threaded holes on gearbox face |
| Weight | ~200–250 g |
| Applications | Wheeled robots, automation systems, conveyor belts, DIY vehicles, RC robotics |
? Included in Package:
-
1 × 300 RPM 12V DC Geared Motor
