Rs. 225.00Rs. 170.00

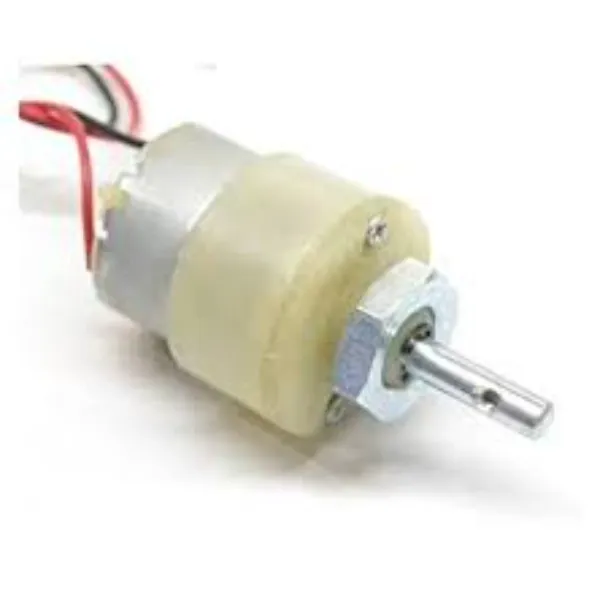

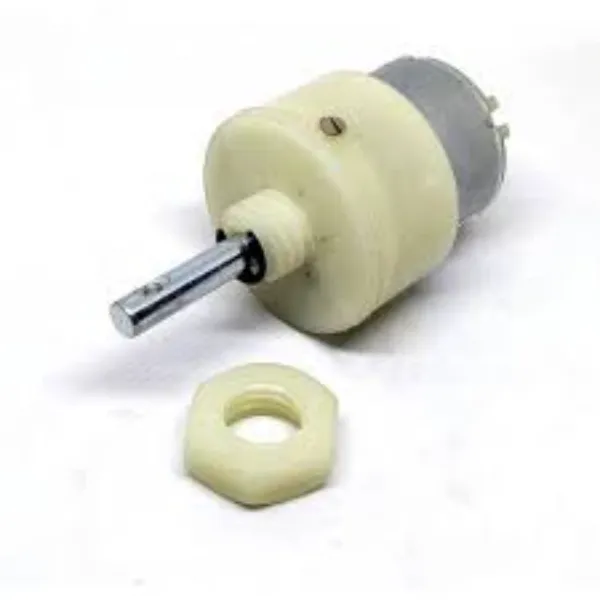

45 RPM 12V DC Geared Motor – low-speed, ultra torque DC motor for robotic arms, conveyor systems, and automation requiring controlled, heavy motion.
The 45 RPM 12V DC Geared Motor is a high-torque, low-speed motor specially engineered for precision-driven mechanical systems. With a robust metal gearbox and a slow rotational speed of approximately 45 RPM at 12V DC, this motor is ideal for robotic arms, pan-tilt units, motorized locks, and industrial automation systems.
The D-type 6mm output shaft allows easy mounting of wheels, pulleys, or couplers, and the faceplate-mounted holes make it convenient to attach the motor to any chassis or mechanical frame. This motor is widely used in projects where controlled motion with substantial torque is needed, such as camera rigs, grippers, load-lifting bots, and IoT-based automation.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~45 RPM @ 12V DC |
| Stall Torque | ~9–10 kg·cm (approximate) |
| Current Draw | ~500 mA (no-load), up to 1.8 A (under load) |
| Shaft Diameter | 6 mm (D-type) |
| Gearbox Material | Metal |
| Mounting Holes | Threaded holes on gearbox faceplate |
| Weight | ~300 g |
| Applications | Robotic arms, gripper modules, smart locks, automation actuators, conveyor lifts, rotating platforms |
? Included in Package:
-
1 × 45 RPM 12V DC Geared Motor
