555 DC Motor 12V
Rs. 160.00Rs. 149.00
Compact and versatile 555 Motor 12V DC – perfect for DIY electronics, robotic drives, model cars, and light-duty mechanical tools.

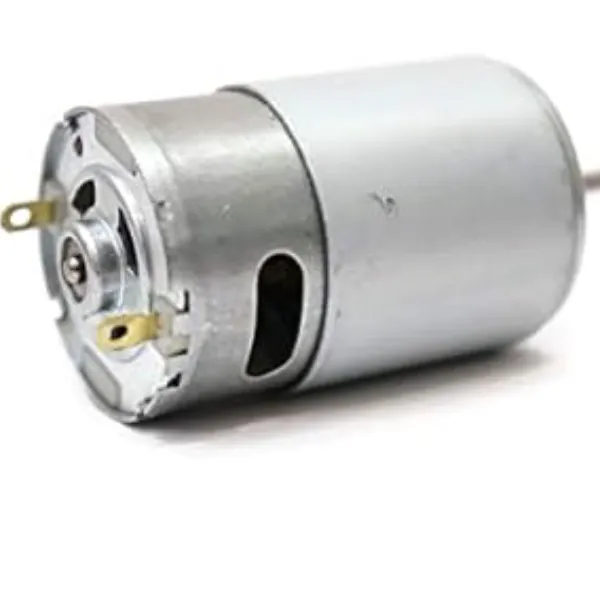

The 555 Motor 12V DC is a reliable, mid-sized brushed DC motor known for its balance of speed and torque. Smaller than the 775 motor but more powerful than basic toy motors, it’s an ideal choice for DIY projects, robotics, model vehicles, mini drills, and other light-to-medium load applications.
It features a standard 3mm or 3.17mm shaft, air-vented casing for cooling, and can run efficiently at 6V to 12V DC. Its size and performance make it a favorite in school projects, robotics kits, and prototyping environments.
| Parameter | Specification |
|---|---|
| Model | 555 Brushed DC Motor |
| Operating Voltage | 6V to 12V DC |
| No-Load Speed | ~5000–7000 RPM @ 12V |
| Stall Torque | Moderate torque |
| Current Draw | ~0.5A (no-load), up to 2A (full load) |
| Motor Type | Brushed DC with air vents |
| Shaft Diameter | 3.17 mm (1/8 inch) |
| Shaft Length | ~12–15 mm |

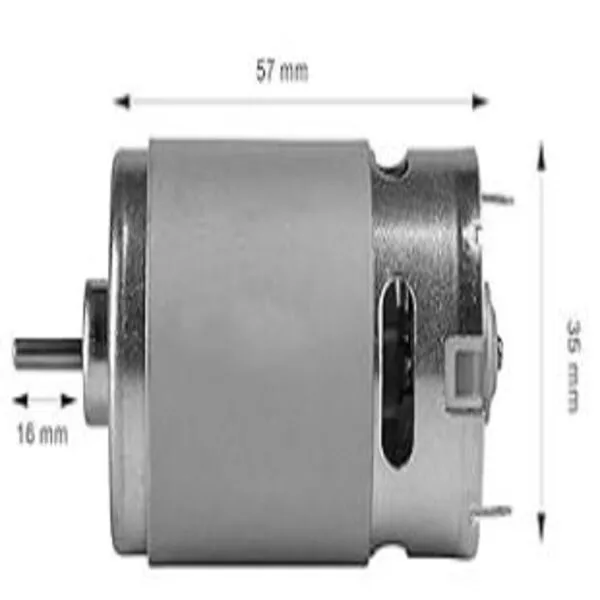

| Motor Diameter | ~35.8 mm |
| Motor Length | ~57 mm |
| Weight | ~150 g |
| Applications | DIY kits, robotics, mini drill machines, RC models, light-load tools, mechanical models |
