Rs. 225.00Rs. 170.00
60 RPM 12V DC Geared Motor – low-speed, high torque motor ideal for robotic arms, drive systems, and embedded automation with precision movement.

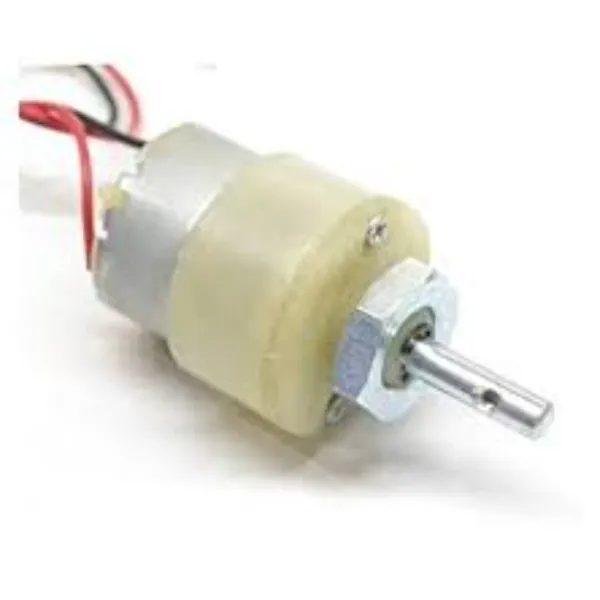

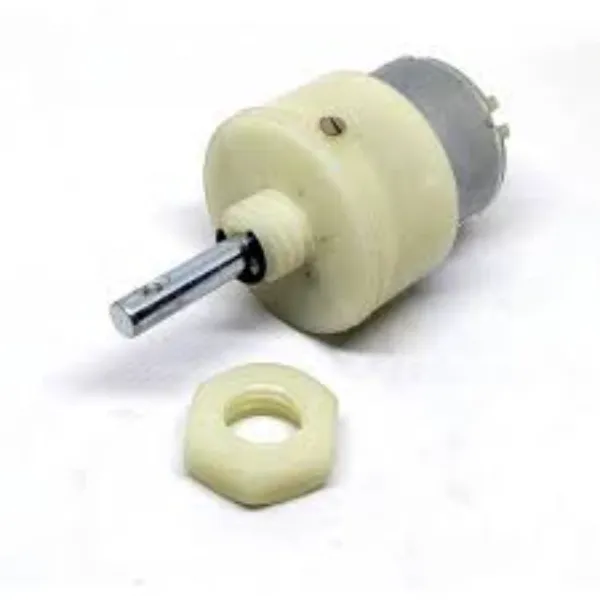

The 60 RPM 12V DC Geared Motor is a high-torque, low-speed DC motor built for robotics, conveyor systems, automated vehicles, and embedded projects requiring strong rotational force and precise control. With a metal gearbox and a no-load speed of around 60 RPM, it is perfect for use in heavy-duty robotic platforms, gripping mechanisms, and mechanical arms.
The D-shaped 6mm output shaft makes it easy to connect wheels, couplers, and rotary encoders, while the threaded mounting holes allow easy integration into most mechanical designs. It runs efficiently at 12V and can be paired with L298N or L293D motor drivers for smooth PWM control.
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC Geared Motor |
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Speed (No Load) | ~60 RPM @ 12V DC |
| Stall Torque | ~8–9 kg·cm (approximate) |
| Current Draw | ~400–600 mA (no-load), up to 1.5 A (under load) |
| Shaft Diameter | 6 mm (D-type) |
| Gearbox Material | Metal |
| Mounting | Pre-threaded holes on gearbox face |
| Weight | ~250–300 g |
| Applications | Robotic arms, grippers, 2WD/4WD drive systems, conveyor belts, automation kits, Arduino-based projects |
? Included in Package:
-
1 × 60 RPM 12V DC Geared Motor
