Rs. 299.00Rs. 230.00
TowerPro MG90S is a high-quality 180° mini digital servo motor with metal gears – perfect for RC models, robotic arms, and Arduino-controlled motion systems.

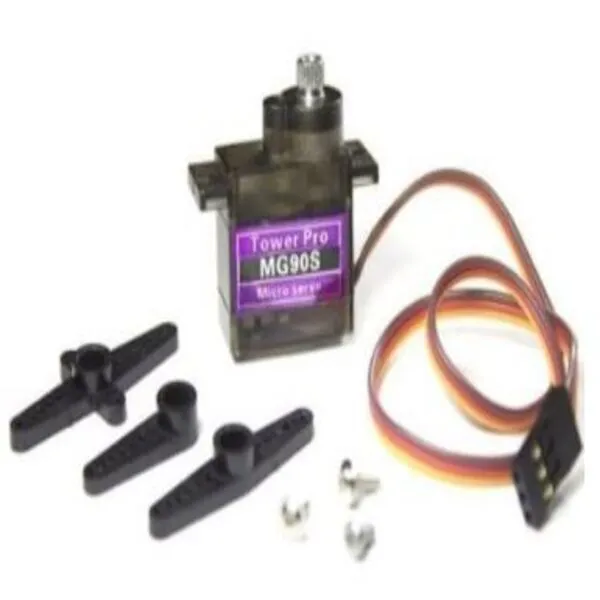

The TowerPro MG90S Mini Digital Servo Motor (180° Rotation) is a high-performance metal gear servo designed for compact projects where durability and precision matter. It offers stable and responsive motion control, making it ideal for robotic arms, RC aircraft, boats, cars, and Arduino projects.
Compared to the SG90 (plastic gear), the MG90S features metal gears, which provide higher strength and longevity under load. It supports PWM control, rotates up to 180°, and includes standard mounting hardware and servo horns.
Whether you’re a robotics enthusiast, RC hobbyist, or embedded systems developer, the MG90S is a reliable servo for accurate angular movement.
| Parameter | Specification |
|---|---|
| Model | TowerPro MG90S |
| Operating Voltage | 4.8V – 6.0V DC |
| Rotation Range | 0° to 180° (PWM controlled) |
| Stall Torque | 1.8 kg·cm @ 4.8V / 2.2 kg·cm @ 6V |
| Speed | ~0.1 sec/60° @ 4.8V |
| Motor Type | Digital with Metal Gears |
| Connector Type | 3-pin Female (Signal, VCC, GND) |
| Weight | ~13.5 g |
| Dimensions | 22.8 × 12.2 × 28.5 mm |
| Gear Material | Metal (high durability) |
| Applications | RC planes, Arduino projects, robotics arms, pan-tilt systems, IoT actuation systems |
