Rs. 299.00Rs. 249.00

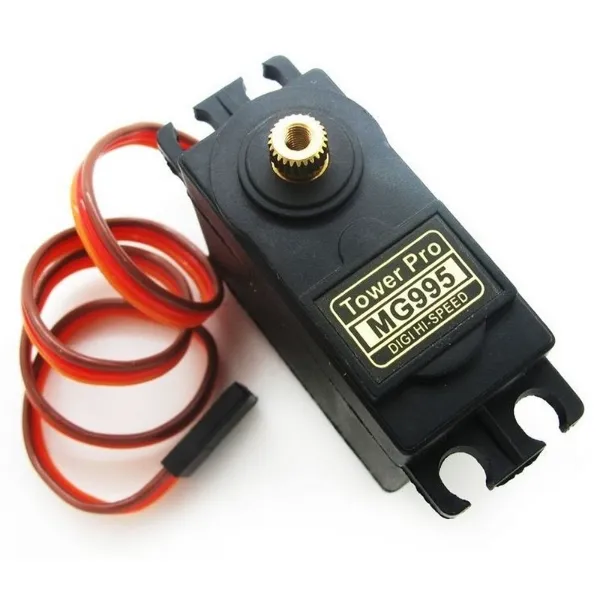

TowerPro MG995 Plastic Gear Servo Motor with 180° rotation – high-torque servo motor ideal for RC models, robotic systems, and Arduino-based actuation projects.
The TowerPro MG995 Plastic Gear Servo Motor (180° Rotation) is a high-torque standard servo motor designed for a wide range of RC and robotics applications. Featuring durable plastic gears and an operating angle of up to 180°, it delivers precise and responsive motion ideal for robotic arms, biped robots, RC cars, and Arduino-controlled mechanisms.
While the MG995 is also available in a metal gear variant, this plastic gear version is cost-effective for educational projects and light-load robotics, offering reliable performance with reduced noise and lower weight.

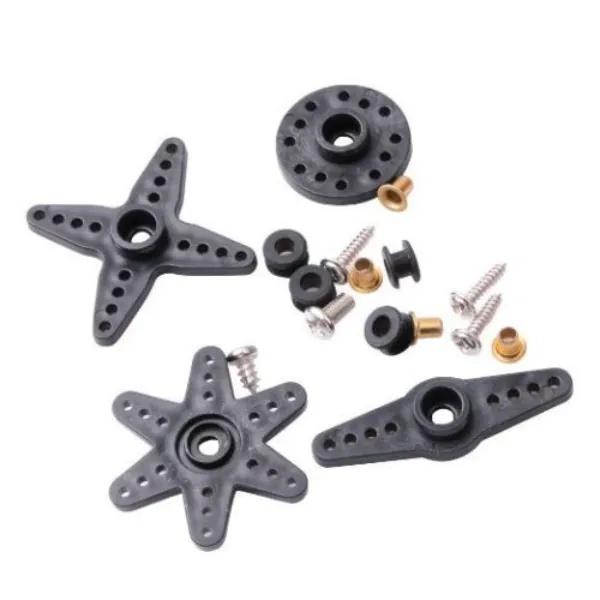

It comes with standard 3-wire connectors, multiple servo horns, and mounting screws – making it ready to integrate with your electronics projects or models.
| Parameter | Specification |
|---|---|
| Model | TowerPro MG995 Plastic Gear |
| Operating Voltage | 4.8V – 7.2V DC |
| Rotation Range | 0° to 180° (PWM controlled) |
| Stall Torque | ~9.4 kg·cm @ 4.8V / ~11 kg·cm @ 6.0V |
| Speed | ~0.2 sec/60° @ 4.8V |
| Gear Type | Plastic |
| Control Signal | PWM (50 Hz), 1ms–2ms pulse width |
| Connector Type | 3-Pin Female (Signal, VCC, GND) |
| Weight | ~55 g |
| Dimensions | 40.7 × 19.7 × 42.9 mm |
| Applications | Robotics arms, RC cars/planes/boats, Arduino projects, pan-tilt systems, DIY automation systems |
