Rs. 399.00Rs. 355.00
TowerPro MG996R is a 360° continuous rotation, high-torque digital servo motor with metal gears – ideal for Arduino, robotics, automation, and RC motion control.

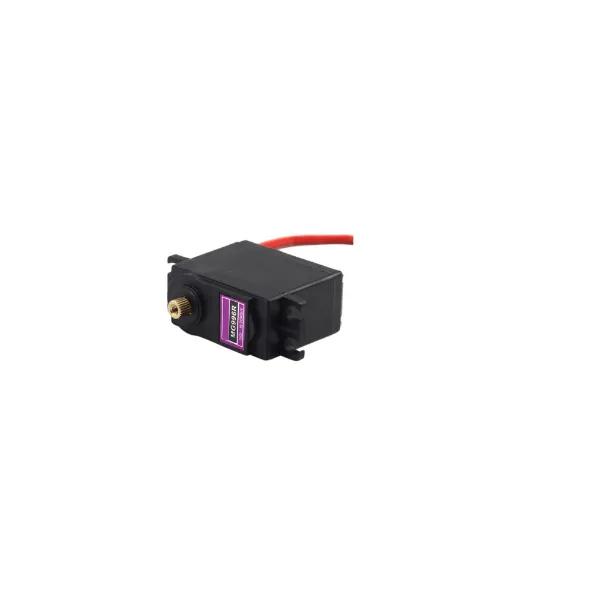

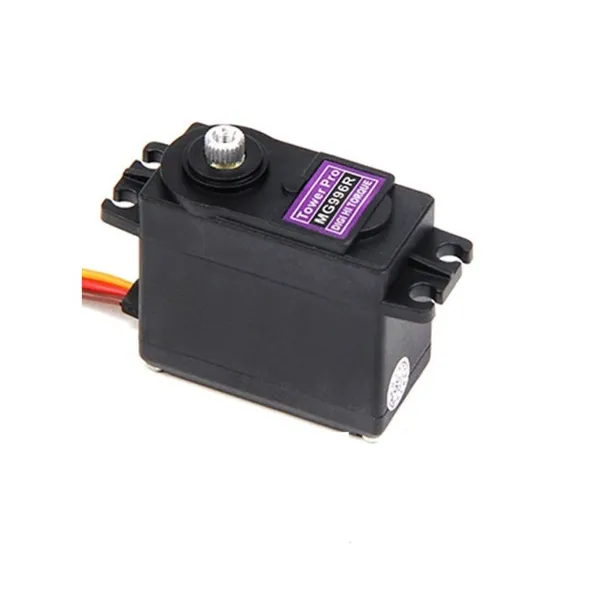

The TowerPro MG996R 360° Digital High Torque Servo Motor is a continuous rotation servo capable of full 360-degree motion, making it suitable for driving robotic wheels, conveyor systems, pan-tilt mechanisms, and RC vehicles. It delivers strong torque, fast response, and stable performance, all housed in a rugged metal gear setup that ensures durability under heavy loads.
Unlike standard servo motors that move to specific angles, this continuous servo behaves like a DC motor with speed and direction control via PWM — making it ideal for mobile robots and rotating mechanisms in embedded systems.
With its digital control and dual ball-bearing support, the MG996R offers better positioning and less jitter compared to older analog models.
| Parameter | Specification |
|---|---|
| Model | TowerPro MG996R (360° Rotation) |
| Operating Voltage | 4.8V – 7.2V DC |
| Rotation | 360° Continuous (speed/direction controlled by PWM) |
| Stall Torque | ~10 kg·cm @ 4.8V / ~12 kg·cm @ 6V |
| Speed | ~0.17 sec/60° @ 6V (note: applies to internal gear speed) |
| Motor Type | Digital with Metal Gears |
| Control Signal | PWM (1ms–2ms pulse width @ 50Hz) |
| Connector Type | 3-Pin Female (Signal, VCC, GND) |
| Weight | ~55 g |
| Dimensions | 40.7 × 19.7 × 42.9 mm |
| Applications | Mobile robots, RC cars, automation systems, Arduino-based projects, continuous rotation mechanisms |
Included in Package:
-
1 × TowerPro MG996R 360° Digital Servo Motor
-
3 × Servo Horns (Straight, Cross, Circular)
-
Mounting Screws Set
